Brass spacer for D-Sub connector　/ DSB-0000EE

Material：Free-cut brass(C3604BD)Cadmium content of less than 75 ppm
Treatment：Nickel plating(Ni)
RoHS compliant product

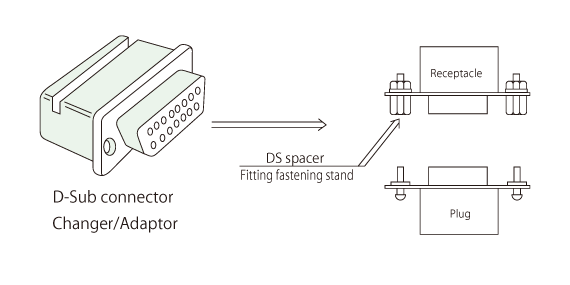

Use example
■DSB-0000EE　
Drawing
MOQ:50pcs
Screw diameter
(pitch)		 L Product code l1 l1 Unit Price($)
M3
(0.5)		 4.5 DSB-3045EE 3.0 3.0 0.26
4.8 DSB-7848EE 3.3 7.8 0.26
6.1 DSB-6561EE 4.5 6.5 0.26
6.3 DSB-7063EE 4.5 7.0 0.26
6.5 DSB-3065EE 4.0 3.0 0.26
7.0 DSB-1570EE 4.5 15.0 0.27
9.5 DSB-4095EE 6.0 4.0 0.26
12.0 DSB-5012EE 6.0 5.0 0.26
13.6 DSB-5013EE 6.0 5.0 0.27
