Terminals( Pins for test probes)/ HT

Material：Free-cut brass(C3604BD)Cadmium content of less than 75 ppm
Treatment：Gold plating (nickel substrate)
RoHS compliant product
■HT-0006 　

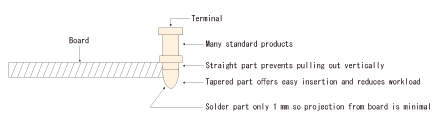

Drawing
For board thickness 0.6
MOQ:50pcs
Board pilot hole d-D D1 l Product code Unit Price($)
0.5 0.5-1.0 0.7 1 HT-0506-1 0.08
2 HT-0506-2 0.08
3 HT-0506-3 0.08
0.6 0.6-1.0 0.7 1 HT-0606-1 0.08
2 HT-0606-2 0.08
3 HT-0606-3 0.08
0.7 0.7-1.5 1.0 1 HT-0706-1 0.08
2 HT-0706-2 0.08
3 HT-0706-3 0.08
0.8 0.8-1.5 1.0 1 HT-0806-1 0.08
2 HT-0806-2 0.08
3 HT-0806-3 0.08
■HT-0010　
Drawing
For board thickness 1.0
MOQ:50pcs
Board pilot hole d-D D1 l Product code Unit Price($)
0.5 0.5-1.0 0.7 3 HT-0510-3 0.08
4 HT-0510-4 0.08
5 HT-0510-5 0.08
0.6 0.6-1.0 0.7 3 HT-0610-3 0.08
4 HT-0610-4 0.08
5 HT-0610-5 0.08
0.7 0.7-1.5 1.0 3 HT-0710-3 0.08
4 HT-0710-4 0.08
5 HT-0710-5 0.09
0.8 0.8-1.5 1.0 3 HT-0810-3 0.08
4 HT-0810-4 0.08
5 HT-0810-5 0.09
0.9 0.9-2.0 1.2 3 HT-0910-3 0.08
4 HT-0910-4 0.08
5 HT-0910-5 0.09
1.0 1.0-2.0 1.2 3 HT-1010-3 0.08
4 HT-1010-4 0.08
5 HT-1010-5 0.09
■HT-0020　
Drawing
For board thickness 2.0
MOQ:50pcs
Board pilot hole d-D D1 l Product code Unit Price($)
0.5 0.5-1.2 0.8 4 HT-0520-4 0.09
5 HT-0520-5 0.09
6 HT-0520-6 0.10
0.6 0.6-1.2 0.8 4 HT-0620-4 0.09
5 HT-0620-5 0.09
6 HT-0620-6 0.10
0.7 0.7-2.0 1.2 3 HT-0720-3 0.08
4 HT-0720-4 0.08
5 HT-0720-5 0.09
6 HT-0720-6 0.10
10 　HT-0720-10 0.11
0.8 0.8-2.0 1.2 3 HT-0820-3 0.08
4 HT-0820-4 0.08
5 HT-0820-5 0.09
6 HT-0820-6 0.10
10 　HT-0820-10 0.11
0.9 0.9-2.0 1.2 3 HT-0920-3 0.08
4 HT-0920-4 0.08
5 HT-0920-5 0.09
6 HT-0920-6 0.10
10 　HT-0920-10 0.11
1.0 1.0-2.0 1.2 3 HT-1020-3 0.08
4 HT-1020-4 0.08
5 HT-1020-5 0.09
6 HT-1020-6 0.10
10 　HT-1020-10 0.11
1.1 1.1-2.5 1.4 4 HT-1120-4 0.10
6 HT-1120-6 0.10
8 HT-1120-8 0.11
10 　HT-1120-10 0.11
1.2 1.2-2.5 1.4 4 HT-1220-4 0.10
6 HT-1220-6 0.10
8 HT-1220-8 0.11
10 　HT-1220-10 0.11
■HT-0025　
Drawing
For board thickness 2.5
MOQ:50pcs
Board pilot hole d-D D1 l Product code Unit Price($)
0.8 0.8-2.0 1.2 3 HT-0825-3 0.08
6 HT-0825-6 0.10
0.9 0.9-2.0 1.2 3 HT-0925-3 0.09
6 HT-0925-6 0.11
1.0 1.0-2.5 1.4 4 HT-1025-4 0.09
7 HT-1025-7 0.11
1.1 1.1-2.5 1.4 4 HT-1125-4 0.10
7 HT-1125-7 0.11
1.2 1.2-2.5 1.4 4 HT-1225-4 0.10
7 HT-1225-7 0.11
