Stacking terminal(Release type)　For pitch 2.54 mm / HTS

【Plug】 Current capacity
Withstand voltage
Insulation resistance
Contact resistance
Operating temperature range 		：1A
：AC600 V for 1 min.
：1000 MΩ min.
：30 mΩ max.
：－40℃ to ＋85℃
Material: Resin PBT (glass content rate 30%)
Thermal deformation temperature ：1.82 MPa: 200℃
UL standard ：UL94V－0 (material)
　 Contacts Brass gold plating (nickel substrate)
【Socket】 Current capacity
Withstand voltage
Insulation resistance
Contact resistance
Operating temperature range 		：1A
：AC500 V for 1 min.
：1000 MΩ min.
：30 mΩ max.
：－40℃ to ＋85℃
Material: Resin PBT (glass content rate 30%)
Thermal deformation temperature ：1.82 MPa: 200℃
UL standard ：UL94V－0 (material)
Contacts Phosphor bronze gold plating (nickel substrate)
　 RoHS compliant product

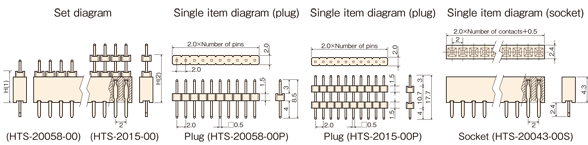

■HTS-20058-00,00P　HTS-2015-00,00P　HTS-20043-00S　(1 row)
HTS-20058-00(Old product code：MISS-2005-00) HTS-2015-00(Old product code：MISS-2015-00)

Pins and sockets are packaged separately when delivering set items.
MOQ: 10 pcs.
For plug alone, MOQ: 50 pcs.
. Specify product codes below while referring to diagrams above.
Pitch H Number of pins Product code(Set) Unit Price($) Product code(Plug alone) Unit Price($) Product code(socket alone) Unit Price($)
2.0 5.8
(1)		 2 HTS-20058-02 0.91 HTS-20058-02P 0.11 HTS-20043-02S 0.81
3 HTS-20058-03 0.96 HTS-20058-03P 0.16 HTS-20043-03S 0.81
4 HTS-20058-04 1.00 HTS-20058-04P 0.20 HTS-20043-04S 0.81
5 HTS-20058-05 1.23 HTS-20058-05P 0.23 HTS-20043-05S 1.01
6 HTS-20058-06 1.48 HTS-20058-06P 0.28 HTS-20043-06S 1.21
7 HTS-20058-07 1.72 HTS-20058-07P 0.32 HTS-20043-07S 1.41
8 HTS-20058-08 1.97 HTS-20058-08P 0.37 HTS-20043-08S 1.61
9 HTS-20058-09 2.20 HTS-20058-09P 0.40 HTS-20043-09S 1.81
10 HTS-20058-10 2.24 HTS-20058-10P 0.44 HTS-20043-10S 2.01
11 HTS-20058-11 2.69 HTS-20058-11P 0.49 HTS-20043-11S 2.21
12 HTS-20058-12 2.93 HTS-20058-12P 0.53 HTS-20043-12S 2.41
13 HTS-20058-13 3.17 HTS-20058-13P 0.57 HTS-20043-13S 2.61
14 HTS-20058-14 3.41 HTS-20058-14P 0.61 HTS-20043-14S 2.81
15 HTS-20058-15 3.66 HTS-20058-15P 0.66 HTS-20043-15S 3.01
16 HTS-20058-16 3.90 HTS-20058-16P 0.70 HTS-20043-16S 3.21
17 HTS-20058-17 4.13 HTS-20058-17P 0.73 HTS-20043-17S 3.41
18 HTS-20058-18 4.38 HTS-20058-18P 0.78 HTS-20043-18S 3.61
19 HTS-20058-19 4.62 HTS-20058-19P 0.82 HTS-20043-19S 3.81
20 HTS-20058-20 4.87 HTS-20058-20P 0.87 HTS-20043-20S 4.01
15.0
(2)		 2 HTS-2015-02 1.03 HTS-2015-02P 0.23 HTS-20043-02S 0.81
3 HTS-2015-03 1.13 HTS-2015-03P 0.33 HTS-20043-03S 0.81
4 HTS-2015-04 1.23 HTS-2015-04P 0.43 HTS-20043-04S 0.81
5 HTS-2015-05 1.53 HTS-2015-05P 0.53 HTS-20043-05S 1.01
6 HTS-2015-06 1.83 HTS-2015-06P 0.63 HTS-20043-06S 1.21
7 HTS-2015-07 2.13 HTS-2015-07P 0.73 HTS-20043-07S 1.41
8 HTS-2015-08 2.43 HTS-2015-08P 0.83 HTS-20043-08S 1.61
9 HTS-2015-09 2.73 HTS-2015-09P 0.93 HTS-20043-09S 1.81
10 HTS-2015-10 3.03 HTS-2015-10P 1.03 HTS-20043-10S 2.01
11 HTS-2015-11 3.33 HTS-2015-11P 1.13 HTS-20043-11S 2.21
12 HTS-2015-12 3.63 HTS-2015-12P 1.23 HTS-20043-12S 2.41
13 HTS-2015-13 3.93 HTS-2015-13P 1.33 HTS-20043-13S 2.61
14 HTS-2015-14 4.23 HTS-2015-14P 1.43 HTS-20043-14S 2.81
15 HTS-2015-15 4.53 HTS-2015-15P 1.53 HTS-20043-15S 3.01
16 HTS-2015-16 4.83 HTS-2015-16P 1.63 HTS-20043-16S 3.21
17 HTS-2015-17 5.13 HTS-2015-17P 1.73 HTS-20043-17S 3.41
18 HTS-2015-18 5.43 HTS-2015-18P 1.83 HTS-20043-18S 3.61
19 HTS-2015-19 5.73 HTS-2015-19P 1.93 HTS-20043-19S 3.81
20 HTS-2015-20 6.03 HTS-2015-20P 2.03 HTS-20043-20S 4.01

Note:

HTS－20058－00 (old product code: MSS－2005－00)



HTS－2015－00 (old product code: MSS－2015－00)
