Pin header( 2.54mm pitch) socket set　 / HTS

【Plug】 Current capacity
Withstand voltage
Insulation resistance
Contact resistance
Operating temperature range 		：3A
：AC800 V for 1 min.
：1000 MΩ min.
：30 mΩ max.
：－40℃ to ＋85℃
　 Material: Resin PBT (glass content rate 30%)
Thermal deformation temperature ：1.82 MPa: 200℃
UL standard: ：UL94V－0 (material)
　 Contacts Brass gold plating (nickel substrate)
【Socket】 Current capacity
Withstand voltage
Insulation resistance
Contact resistance
Operating temperature range 		：3A
：AC500 V for 1 min.
：1000 MΩ min.
：30 mΩ max.
：－40℃ to ＋85℃
　 Material: Resin PBT (glass content rate 30%)
Thermal deformation temperature ：1.82 MPa: 200℃
UL standard ：UL94V－0 (material)
　 Resin part Phosphor bronze gold plating (nickel substrate)
　 RoHS compliant product
■HTS-2511-00,00P　HTS-25085-00S
HTS-2511-00(Old product code：MSS-2510-00)　

Pins and sockets are packaged separately when delivering set items.
MOQ: 10 pcs.
For plug alone, MOQ: 50 pcs.

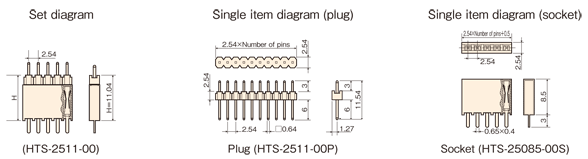

. Specify product codes below while referring to diagrams above.
Pitch H Number of pins Product code(Set) Unit Price($) Product code(Plug alone) Unit Price($) Product code(socket alone) Unit Price($)
2.54 11.0 2 HTS-2511-02 0.64 HTS-2511-02P 0.11 HTS-25085-02S 0.54
3 HTS-2511-03 0.69 HTS-2511-03P 0.16 HTS-25085-03S 0.54
4 HTS-2511-04 0.73 HTS-2511-04P 0.20 HTS-25085-04S 0.54
5 HTS-2511-05 0.93 HTS-2511-05P 0.23 HTS-25085-05S 0.71
6 HTS-2511-06 1.08 HTS-2511-06P 0.28 HTS-25085-06S 0.81
7 HTS-2511-07 1.29 HTS-2511-07P 0.32 HTS-25085-07S 0.98
8 HTS-2511-08 1.43 HTS-2511-08P 0.37 HTS-25085-08S 1.08
9 HTS-2511-09 1.63 HTS-2511-09P 0.40 HTS-25085-09S 1.24
10 HTS-2511-10 1.78 HTS-2511-10P 0.44 HTS-25085-10S 1.34
11 HTS-2511-11 1.96 HTS-2511-11P 0.49 HTS-25085-11S 1.51
12 HTS-2511-12 2.13 HTS-2511-12P 0.53 HTS-25085-12S 1.64
13 HTS-2511-13 2.30 HTS-2511-13P 0.57 HTS-25085-13S 1.78
14 HTS-2511-14 2.48 HTS-2511-14P 0.61 HTS-25085-14S 1.91
15 HTS-2511-15 2.66 HTS-2511-15P 0.66 HTS-25085-15S 2.04
16 HTS-2511-16 2.83 HTS-2511-16P 0.70 HTS-25085-16S 2.18
17 HTS-2511-17 3.00 HTS-2511-17P 0.73 HTS-25085-17S 2.31
18 HTS-2511-18 3.18 HTS-2511-18P 0.78 HTS-25085-18S 2.44
19 HTS-2511-19 3.36 HTS-2511-19P 0.82 HTS-25085-19S 2.54
20 HTS-2511-20 3.53 HTS-2511-20P 0.87 HTS-25085-20S 2.68

Note:

HTS－2511－00 (old product code: MSS－2510－00)
