Spacer for pin headers　/ KS

Material：Free-cut brass(C3604BD)Cadmium content of less than 75 ppm
Treatment：Nickel plating(Ni)
RoHS compliant product
■KS-2000
Drawing
MOQ:50pcs
Screw diameter
(pitch)		 L Product code l Unit Price($)
M2
(0.4)		 5.1 KS-2005 3 0.22
5.9 KS-2006 3 0.22
7.6 KS-2008 5 0.23
10.0 KS-2010 5 0.22
10.9 KS-2011 5 0.26
12.7 KS-2012 5 0.28
15.0 KS-2015 5 0.28
15.3 　KS-2015.3 5 0.30
17.8 KS-2018 5 0.32
20.3 KS-2020 5 0.34
22.9 KS-2023 5 0.36
25.4 KS-2025 5 0.38

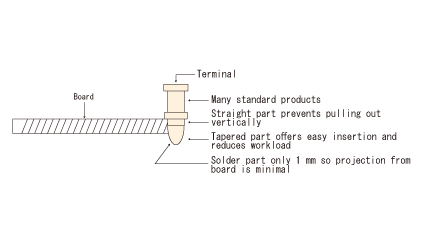

【Use example】
When mounting sub-boards with interval stacking terminals, use space terminal
mounting stands (KS Series) when looking for improved inter-connect ability and stability.
Inch size spacers are also available.
