Terminals( PPS body) / MIS-0000

【Pin】 Material：Phosphor bronze(C5191)
  Treatment：Gold plating (nickel substrate)
【Stand】 Material：Polyphenylene sulfide(PPS)
  Color：Brown
  Thermal deformation temperature：1.82Mpa:260℃
  Permissible current：3A
  UL standard：UL94V-0(Material)
  RoHS compliant product
■MIS-2000
Drawing
MOQ:50pcs
M Product code L Unit Price($)
2 MIS-2004 4 0.38
MIS-2006 6 0.42
MIS-2008 8 0.47
MIS-2010 10 0.49
■MIS-2600
Drawing
MOQ:50pcs
M Product code L Unit Price($)
2.6 MIS-2604 4 0.38
MIS-2606 6 0.42
MIS-2608 8 0.47
MIS-2610 10 0.49
■ MIS-3000
Drawing
MOQ:50pcs
M Product code L Unit Price($)
3 MIS-3004 4 0.38
MIS-3006 6 0.42
MIS-3008 8 0.47
MIS-3010 10 0.49
●Spacer for soldering to board.
●Have 4 pins for insertion into board, allowing secure fi xing.

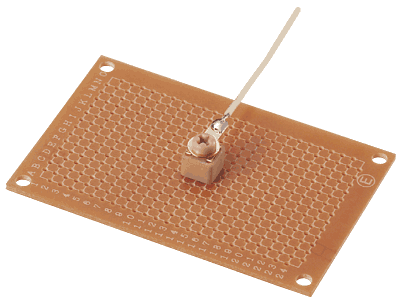

● Pins are embedded in resin stand preventing short circuits due to contact from the side. Electrifi cation from board is possible by mounting lug terminals.
●Insulative eff ects can be improved by using PPS screws sold separately.
● Choose from screw diameters of M2, M2.6 and M3, each with heights of 4, 6, 8, and 10 mm.
Featuresイメージ1
Featuresイメージ2
