Jump socket for pin headers(For pitch 2.54 mm) / MJS-06050

【Contact】 Material:Brass
  Treatment:Gold plating(Nickel substrate)
【Resin part】 Material:PBT(Glass content rate 30%)
  Color:Black・Blue・Red
  Thermal deformation temperature:1.82Mpa:200℃
  UL standard:UL94V-0(Material)
【Specifications】 Rated current:3A
  Withstand voltage:AC500 V for 1 min.
  Contact resistance:20mΩ max
  Insulation resistance:1000MΩ min
  Use temperature range:-40℃ to +85℃
  RoHS compliant product
■MJS-06050

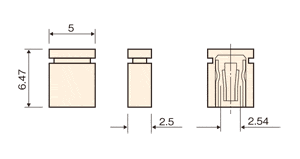

Drawing For pitch 2.54 mm
MOQ:50pcs
Color Product code Unit Price($)
Black MJS-0605B  0.21
Red MJS-0605R  0.21
Blue MJS-0605BU 0.21


Suitable circuit switching terminal product code
JTS-2500-00 JTW-2500-00
JLS-2500-00 JLW-2500-00

Circuit switching is made possible by combining jumper sockets with circuit switching terminals (product codes: JTS-2500, JTW-2500) . Height from board mounting surface when mounted is 9.01 mm.
