Jump socket for pin headers (For pitch 2.54 mm) / MJS-13050

【Contact】 Material：Brass
  Treatment：Gold plating(Nickel substrate)
【Resin part】 Material：PBT(Glass content rate 30%)
  Color：Black
  Thermal deformation temperature：1.82Mpa:200℃
  UL standard：UL94V-0(Material)
【Specifications】 Rated current：3A
  Withstand voltage：AC500 V for 1 min.
  Contact resistance：20mΩ max
  Insulation resistance：1000MΩ min
  Use temperature range：－40℃ to ＋85℃
  RoHS compliant product
■MJS-13050

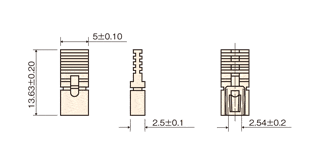

Drawing For pitch 2.54 mm
MOQ:50pcs
Color Product code Unit Price($)
Black MJS-1305B　 0.28


Suitable circuit switching terminal product code
JTS-2500-00 JTW-2500-00

JLS-2500-00

JLW-2500-00

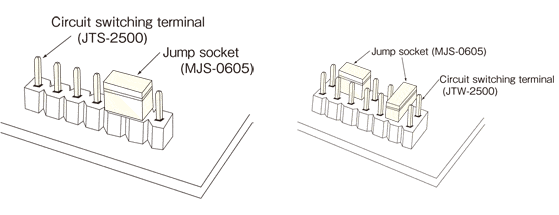

Circuit switching is made possible by combining jumper sockets with circuit switching
terminals (product codes: JTS-2500, JTW-2500) .
Height from board mounting surface when mounted is 9.01 mm.
