Pin header( 2.54mm pitch) / MTS

【Contact part】 Material：Brass
  Treatment：Gold plating(Nickel substrate)
【Resin part】 Material：PBT(Glass content rate 30%)
  Color：Black
  Thermal deformation temperature：1.82Mpa:200℃
  UL standard：UL94V-0(Material)
【Specifications】 Current capacity：3A
  Withstand voltage：AC800 V for 1 min.
  Contact resistance：30mΩ max
  Insulation resistance：1000MΩ min
  Use temperature range：－40℃ to ＋85℃
  RoHS compliant product
■MTS-2502-00　(1 row)
Drawing PC board mounting hole diameter φ1.02
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
2.54 1 MTS-2502-01 0.09
2 MTS-2502-02 0.13
3 MTS-2502-03 0.17
4 MTS-2502-04 0.21
5 MTS-2502-05 0.26
6 MTS-2502-06 0.30
7 MTS-2502-07 0.33
8 MTS-2502-08 0.38
9 MTS-2502-09 0.42
10 MTS-2502-10 0.47
11 MTS-2502-11 0.50
12 MTS-2502-12 0.54
13 MTS-2502-13 0.59
14 MTS-2502-14 0.63
15 MTS-2502-15 0.67
16 MTS-2502-16 0.71
17 MTS-2502-17 0.76
18 MTS-2502-18 0.80
19 MTS-2502-19 0.83
20 MTS-2502-20 0.88
21 MTS-2502-21 0.92
22 MTS-2502-22 0.97
23 MTS-2502-23 1.00
24 MTS-2502-24 1.04
25 MTS-2502-25 1.09
26 MTS-2502-26 1.13
27 MTS-2502-27 1.17
28 MTS-2502-28 1.21
29 MTS-2502-29 1.26
30 MTS-2502-30 1.30
31 MTS-2502-31 1.33
32 MTS-2502-32 1.38
33 MTS-2502-33 1.42
34 MTS-2502-34 1.47
35 MTS-2502-35 1.50
36 MTS-2502-36 1.54
37 MTS-2502-37 1.59
38 MTS-2502-38 1.63
39 MTS-2502-39 1.67
40 MTS-2502-40 1.71
■MTS-2505-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
5.08 1 MTS-2505-01 0.11
2 MTS-2505-02 0.17
3 MTS-2505-03 0.23
4 MTS-2505-04 0.30
5 MTS-2505-05 0.37
6 MTS-2505-06 0.42
7 MTS-2505-07 0.49
8 MTS-2505-08 0.56
9 MTS-2505-09 0.61
10 MTS-2505-10 0.68
11 MTS-2505-11 0.74
12 MTS-2505-12 0.80
13 MTS-2505-13 0.87
14 MTS-2505-14 0.93
15 MTS-2505-15 1.00
16 MTS-2505-16 1.06
17 MTS-2505-17 1.12
18 MTS-2505-18 1.19
19 MTS-2505-19 1.24
20 MTS-2505-20 1.31
21 MTS-2505-21 1.38
22 MTS-2505-22 1.43
23 MTS-2505-23 1.50
24 MTS-2505-24 1.57
25 MTS-2505-25 1.63
26 MTS-2505-26 1.69
27 MTS-2505-27 1.76
28 MTS-2505-28 1.82
29 MTS-2505-29 1.88
30 MTS-2505-30 1.94
31 MTS-2505-31 2.01
32 MTS-2505-32 2.07
33 MTS-2505-33 2.13
34 MTS-2505-34 2.20
35 MTS-2505-35 2.27
36 MTS-2505-36 2.32
37 MTS-2505-37 2.39
38 MTS-2505-38 2.46
39 MTS-2505-39 2.51
40 MTS-2505-40 2.58
■MTS-2506-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
6 1 MTS-2506-01 0.11
2 MTS-2506-02 0.17
3 MTS-2506-03 0.23
4 MTS-2506-04 0.30
5 MTS-2506-05 0.37
6 MTS-2506-06 0.42
7 MTS-2506-07 0.49
8 MTS-2506-08 0.56
9 MTS-2506-09 0.61
10 MTS-2506-10 0.68
11 MTS-2506-11 0.74
12 MTS-2506-12 0.80
13 MTS-2506-13 0.87
14 MTS-2506-14 0.93
15 MTS-2506-15 1.00
16 MTS-2506-16 1.06
17 MTS-2506-17 1.12
18 MTS-2506-18 1.19
19 MTS-2506-19 1.24
20 MTS-2506-20 1.31
21 MTS-2506-21 1.38
22 MTS-2506-22 1.43
23 MTS-2506-23 1.50
24 MTS-2506-24 1.57
25 MTS-2506-25 1.63
26 MTS-2506-26 1.69
27 MTS-2506-27 1.76
28 MTS-2506-28 1.82
29 MTS-2506-29 1.88
30 MTS-2506-30 1.94
31 MTS-2506-31 2.01
32 MTS-2506-32 2.07
33 MTS-2506-33 2.13
34 MTS-2506-34 2.20
35 MTS-2506-35 2.27
36 MTS-2506-36 2.32
37 MTS-2506-37 2.39
38 MTS-2506-38 2.46
39 MTS-2506-39 2.51
40 MTS-2506-40 2.58
■MTS-2508-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
8 1 MTS-2508-01 0.11
2 MTS-2508-02 0.19
3 MTS-2508-03 0.26
4 MTS-2508-04 0.32
5 MTS-2508-05 0.40
6 MTS-2508-06 0.47
7 MTS-2508-07 0.53
8 MTS-2508-08 0.60
9 MTS-2508-09 0.68
10 MTS-2508-10 0.74
11 MTS-2508-11 0.81
12 MTS-2508-12 0.89
13 MTS-2508-13 0.96
14 MTS-2508-14 1.02
15 MTS-2508-15 1.10
16 MTS-2508-16 1.17
17 MTS-2508-17 1.23
18 MTS-2508-18 1.30
19 MTS-2508-19 1.38
20 MTS-2508-20 1.44
21 MTS-2508-21 1.51
22 MTS-2508-22 1.59
23 MTS-2508-23 1.66
24 MTS-2508-24 1.72
25 MTS-2508-25 1.80
26 MTS-2508-26 1.87
27 MTS-2508-27 1.93
28 MTS-2508-28 2.00
29 MTS-2508-29 2.08
30 MTS-2508-30 2.14
31 MTS-2508-31 2.21
32 MTS-2508-32 2.29
33 MTS-2508-33 2.36
34 MTS-2508-34 2.42
35 MTS-2508-35 2.50
36 MTS-2508-36 2.57
37 MTS-2508-37 2.63
38 MTS-2508-38 2.70
39 MTS-2508-39 2.78
40 MTS-2508-40 2.84
■MTS-2510-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
10 1 MTS-2510-01 0.12
2 MTS-2510-02 0.20
3 MTS-2510-03 0.28
4 MTS-2510-04 0.36
5 MTS-2510-05 0.43
6 MTS-2510-06 0.50
7 MTS-2510-07 0.58
8 MTS-2510-08 0.66
9 MTS-2510-09 0.73
10 MTS-2510-10 0.81
11 MTS-2510-11 0.89
12 MTS-2510-12 0.97
13 MTS-2510-13 1.04
14 MTS-2510-14 1.12
15 MTS-2510-15 1.20
16 MTS-2510-16 1.27
17 MTS-2510-17 1.34
18 MTS-2510-18 1.42
19 MTS-2510-19 1.50
20 MTS-2510-20 1.58
21 MTS-2510-21 1.66
22 MTS-2510-22 1.73
23 MTS-2510-23 1.81
24 MTS-2510-24 1.89
25 MTS-2510-25 1.97
26 MTS-2510-26 2.03
27 MTS-2510-27 2.11
28 MTS-2510-28 2.19
29 MTS-2510-29 2.27
30 MTS-2510-30 2.34
31 MTS-2510-31 2.42
32 MTS-2510-32 2.50
33 MTS-2510-33 2.58
34 MTS-2510-34 2.66
35 MTS-2510-35 2.73
36 MTS-2510-36 2.80
37 MTS-2510-37 2.88
38 MTS-2510-38 2.96
39 MTS-2510-39 3.03
40 MTS-2510-40 3.11
■MTS-2512-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
12 1 MTS-2512-01 0.12
2 MTS-2512-02 0.21
3 MTS-2512-03 0.29
4 MTS-2512-04 0.37
5 MTS-2512-05 0.46
6 MTS-2512-06 0.53
7 MTS-2512-07 0.61
8 MTS-2512-08 0.70
9 MTS-2512-09 0.78
10 MTS-2512-10 0.87
11 MTS-2512-11 0.94
12 MTS-2512-12 1.02
13 MTS-2512-13 1.11
14 MTS-2512-14 1.19
15 MTS-2512-15 1.27
16 MTS-2512-16 1.36
17 MTS-2512-17 1.43
18 MTS-2512-18 1.51
19 MTS-2512-19 1.60
20 MTS-2512-20 1.68
21 MTS-2512-21 1.76
22 MTS-2512-22 1.84
23 MTS-2512-23 1.92
24 MTS-2512-24 2.00
25 MTS-2512-25 2.09
26 MTS-2512-26 2.17
27 MTS-2512-27 2.24
28 MTS-2512-28 2.33
29 MTS-2512-29 2.41
30 MTS-2512-30 2.50
31 MTS-2512-31 2.58
32 MTS-2512-32 2.66
33 MTS-2512-33 2.74
34 MTS-2512-34 2.82
35 MTS-2512-35 2.90
36 MTS-2512-36 2.99
37 MTS-2512-37 3.07
38 MTS-2512-38 3.14
39 MTS-2512-39 3.23
40 MTS-2512-40 3.31
■MTS-2514-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
14 1 MTS-2514-01 0.13
2 MTS-2514-02 0.22
3 MTS-2514-03 0.31
4 MTS-2514-04 0.40
5 MTS-2514-05 0.49
6 MTS-2514-06 0.58
7 MTS-2514-07 0.67
8 MTS-2514-08 0.76
9 MTS-2514-09 0.84
10 MTS-2514-10 0.93
11 MTS-2514-11 1.01
12 MTS-2514-12 1.10
13 MTS-2514-13 1.19
14 MTS-2514-14 1.28
15 MTS-2514-15 1.37
16 MTS-2514-16 1.46
17 MTS-2514-17 1.54
18 MTS-2514-18 1.63
19 MTS-2514-19 1.72
20 MTS-2514-20 1.81
21 MTS-2514-21 1.90
22 MTS-2514-22 1.99
23 MTS-2514-23 2.08
24 MTS-2514-24 2.17
25 MTS-2514-25 2.26
26 MTS-2514-26 2.34
27 MTS-2514-27 2.43
28 MTS-2514-28 2.52
29 MTS-2514-29 2.61
30 MTS-2514-30 2.70
31 MTS-2514-31 2.78
32 MTS-2514-32 2.87
33 MTS-2514-33 2.96
34 MTS-2514-34 3.04
35 MTS-2514-35 3.13
36 MTS-2514-36 3.22
37 MTS-2514-37 3.31
38 MTS-2514-38 3.40
39 MTS-2514-39 3.49
40 MTS-2514-40 3.58
■MTS-2515-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
15 1 MTS-2515-01 0.14
2 MTS-2515-02 0.23
3 MTS-2515-03 0.33
4 MTS-2515-04 0.42
5 MTS-2515-05 0.52
6 MTS-2515-06 0.61
7 MTS-2515-07 0.71
8 MTS-2515-08 0.80
9 MTS-2515-09 0.90
10 MTS-2515-10 1.00
11 MTS-2515-11 1.09
12 MTS-2515-12 1.19
13 MTS-2515-13 1.28
14 MTS-2515-14 1.38
15 MTS-2515-15 1.47
16 MTS-2515-16 1.57
17 MTS-2515-17 1.66
18 MTS-2515-18 1.76
19 MTS-2515-19 1.84
20 MTS-2515-20 1.94
21 MTS-2515-21 2.04
22 MTS-2515-22 2.13
23 MTS-2515-23 2.23
24 MTS-2515-24 2.32
25 MTS-2515-25 2.42
26 MTS-2515-26 2.51
27 MTS-2515-27 2.61
28 MTS-2515-28 2.70
29 MTS-2515-29 2.80
30 MTS-2515-30 2.90
31 MTS-2515-31 2.99
32 MTS-2515-32 3.09
33 MTS-2515-33 3.18
34 MTS-2515-34 3.28
35 MTS-2515-35 3.37
36 MTS-2515-36 3.47
37 MTS-2515-37 3.56
38 MTS-2515-38 3.66
39 MTS-2515-39 3.74
40 MTS-2515-40 3.84
■MTS-2520-00　(1 row)
Drawing PC board mounting hole diameter1.02φ
Pin less than 20 pins MOQ: 50 pcs.
Pin more than 21 pins MOQ: 10 pcs.
H Number of pins Product code Unit Price($)
20 1 MTS-2520-01 0.17
2 MTS-2520-02 0.28
3 MTS-2520-03 0.40
4 MTS-2520-04 0.51
5 MTS-2520-05 0.63
6 MTS-2520-06 0.74
7 MTS-2520-07 0.87
8 MTS-2520-08 0.98
9 MTS-2520-09 1.10
10 MTS-2520-10 1.21
11 MTS-2520-11 1.33
12 MTS-2520-12 1.44
13 MTS-2520-13 1.57
14 MTS-2520-14 1.68
15 MTS-2520-15 1.80
16 MTS-2520-16 1.91
17 MTS-2520-17 2.03
18 MTS-2520-18 2.14
19 MTS-2520-19 2.27
20 MTS-2520-20 2.38
21 MTS-2520-21 2.50
22 MTS-2520-22 2.61
23 MTS-2520-23 2.73
24 MTS-2520-24 2.84
25 MTS-2520-25 2.97
26 MTS-2520-26 3.08
27 MTS-2520-27 3.20
28 MTS-2520-28 3.31
29 MTS-2520-29 3.43
30 MTS-2520-30 3.54
31 MTS-2520-31 3.67
32 MTS-2520-32 3.78
33 MTS-2520-33 3.90
34 MTS-2520-34 4.01
35 MTS-2520-35 4.13
36 MTS-2520-36 4.24
37 MTS-2520-37 4.37
38 MTS-2520-38 4.48
39 MTS-2520-39 4.60
40 MTS-2520-40 4.71
(Use example)

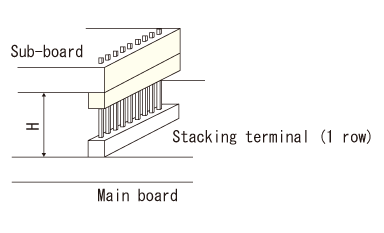

For mounting a sub-board onto a main board at an interval of H (mm) as illustrated below.
