Battery holder / CDH-100・CDH-200

【Specifications】 Rated current：120mA
Applicable batteries：CR2032
Contact resistance：≤100 mΩ
Insulation resistance：≥100 MΩ
Withstand voltage：AC500V　no problems for 1 min.
Use temperature range：－20℃ to ＋60℃
【Resin Part】 Material：66Nylon (Glass content rate 30%)
Flammability：UL94-HB (material)
【Contacts】 Material：Stainless steel
Treatment：Gold plating (nickel substrate)
RoHS compliant product
We recommend advance testing of CDH series items before actual use since
the properties of the resin casing may change under hot conditions.
■CDH-100　

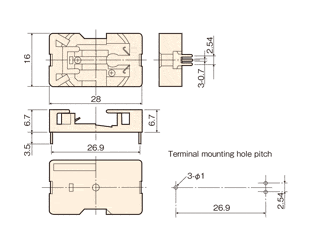

DrawingFor through-hole pin mounting
MOQ:10pcs
Applicable batteries Product code Unit Price($)
CR2032 CDH-101 1.62
■CDH-200　

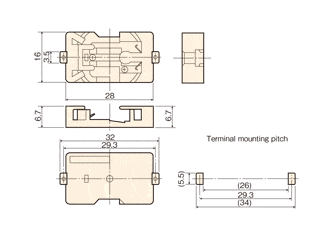

DrawingSurface mount type
MOQ:10pcs
Applicable batteries Product code Unit Price($)
CR2032 CDH-201 1.62
Battery holder for mounting button batteries on a PC board
●Once the battery is mounted it will be safely secured and not fall out easily, preventing risk of contact failure.

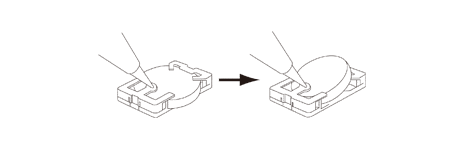

●When removing the battery, simply press the tab lightly in the middle with the fi ngertip or a pen tip.
●Available in through-hole pin and surface mount types.
