Battery holder / CDH-400

【Specifications】 Rated current: 1 A
Contact resistance: ≥20 mΩ (DC 100 mA)
Insulation resistance：≥1000 MΩ
Use temperature range：－55℃ to ＋105℃
【Resin Part】 Material：PBT
Flammability：UL94V-0 (material)
【Contacts】 Material：Brass
Treatment：Tin plating (nickel substrate)
RoHS compliant product
■CDH-400

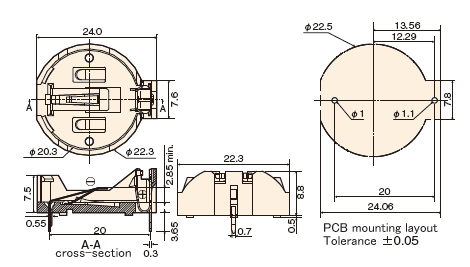

Drawing
For through-hole pin mounting
MOQ:10pcs
Applicable batteries Product code Unit Price($)
CR2032 CDH-401 0.56
CDH　●Button battery holder


Battery holder for mounting button batteries on a PC board

  • ●Once the battery is mounted it will be safely secured and not fall out easily, preventing risk of contact failure.
    ●When removing the battery, simply press the tab lightly in the middle with the fi ngertip or a pen tip.
    ●Available in through-hole pin and surface mount types.
