Spacer for round LEDs( 2 and 3 tiers)　/ LDZ-R

Material：PBT (grade #3316)
Color：Black
Thermal deformation temperature：1.82Mpa:200℃
UL standard：UL94V-0(Material)
RoHS compliant product

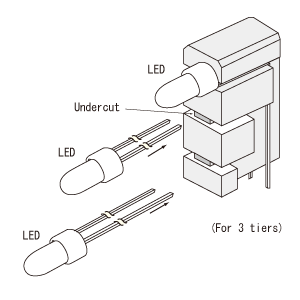

Use example
■LDZ-220R
Drawing Board mounting hole dimensions
3Φ,5ΦFor 2 legs
MOQ:50pcs
LEDs mounted Product code Unit Price($)
2 LDZ-220R 0.19
■LDZ-330R
Drawing Board mounting hole dimensions
3Φ,5ΦFor 2 legs
MOQ:50pcs
LED
取付数		 Product code Unit Price($)
3 LDZ-330R 0.20
Spacer for mounting LEDs in 2/3 tiers
●For LED head diameter of 3φ or 5φ.
●Can stack LEDs in 2/3 tiers.
●After inserting legs, bend at 90° along groove sides. Bending can be checked visually.
●Undercut provided for resin fi lling at LED leg base,alleviating concerns about looseness during mounting.
