Polycarbonate　Long pipe / CPC

Material：PC(Polycarbonate)
Color：Transparent
Thermal deformation temperature：1.82Mpa:130℃
UL standard：UL94V-2(material)
RoHS compliant product
■CPC-300
Drawing Outer diameterΦ6
MOQ:10pcs
Screw diameter L Product code Unit Price($)
For M3 52 CPC-352 0.34
55 CPC-355 0.34
58 CPC-358 0.38
60 CPC-360 0.38
62 CPC-362 0.38
65 CPC-365 0.38
68 CPC-368 0.40
70 CPC-370 0.40
72 CPC-372 0.40
75 CPC-375 0.43
78 CPC-378 0.46
80 CPC-380 0.46
82 CPC-382 0.46
85 CPC-385 0.46
88 CPC-388 0.46
90 CPC-390 0.49
92 CPC-392 0.49
95 CPC-395 0.49
98 CPC-398 0.49
100 CPC-3100 0.54
105 CPC-3105 0.54
110 CPC-3110 0.57
115 CPC-3115 0.57
120 CPC-3120 0.60
125 CPC-3125 0.60
130 CPC-3130 0.62
135 CPC-3135 0.62
140 CPC-3140 0.62
145 CPC-3145 0.68
150 CPC-3150 0.68
155 CPC-3155 0.71
160 CPC-3160 0.71
165 CPC-3165 0.73
170 CPC-3170 0.73
175 CPC-3175 0.77
180 CPC-3180 0.77
185 CPC-3185 0.79
190 CPC-3190 0.79
195 CPC-3195 0.82
200 CPC-3200 0.82
■CPC-400
Drawing Outer diameterΦ8
MOQ:10pcs
Screw diameter L Product code Unit Price($)
For M4 52 CPC-452 0.46
55 CPC-455 0.49
58 CPC-458 0.49
60 CPC-460 0.49
62 CPC-462 0.51
65 CPC-465 0.51
68 CPC-468 0.54
70 CPC-470 0.54
72 CPC-472 0.54
75 CPC-475 0.60
78 CPC-478 0.60
80 CPC-480 0.62
82 CPC-482 0.62
85 CPC-485 0.66
88 CPC-488 0.66
90 CPC-490 0.68
92 CPC-492 0.68
95 CPC-495 0.68
98 CPC-498 0.71
100 CPC-4100 0.73
105 CPC-4105 0.77
110 CPC-4110 0.79
115 CPC-4115 0.82
120 CPC-4120 0.84
125 CPC-4125 0.88
130 CPC-4130 0.88
135 CPC-4135 0.90
140 CPC-4140 0.93
145 CPC-4145 0.99
150 CPC-4150 1.01
155 CPC-4155 1.04
160 CPC-4160 1.07
165 CPC-4165 1.07
170 CPC-4170 1.10
175 CPC-4175 1.12
180 CPC-4180 1.16
185 CPC-4185 1.18
190 CPC-4190 1.21
195 CPC-4195 1.23
200 CPC-4200 1.23
■CPC-500
Drawing Outer diameterΦ8
MOQ:10pcs
Screw diameter L Product code Unit Price($)
For M5 52 CPC-552 0.38
55 CPC-555 0.40
58 CPC-558 0.40
60 CPC-560 0.40
62 CPC-562 0.43
65 CPC-565 0.43
68 CPC-568 0.43
70 CPC-570 0.46
72 CPC-572 0.46
75 CPC-575 0.49
78 CPC-578 0.51
80 CPC-580 0.51
82 CPC-582 0.51
85 CPC-585 0.54
88 CPC-588 0.54
90 CPC-590 0.54
92 CPC-592 0.57
95 CPC-595 0.57
98 CPC-598 0.57
100 CPC-5100 0.62
105 CPC-5105 0.62
110 CPC-5110 0.66
115 CPC-5115 0.68
120 CPC-5120 0.68
125 CPC-5125 0.71
130 CPC-5130 0.73
135 CPC-5135 0.77
140 CPC-5140 0.77
145 CPC-5145 0.82
150 CPC-5150 0.84
155 CPC-5155 0.84
160 CPC-5160 0.88
165 CPC-5165 0.90
170 CPC-5170 0.90
175 CPC-5175 0.93
180 CPC-5180 0.96
185 CPC-5185 0.96
190 CPC-5190 0.99
195 CPC-5195 1.01
200 CPC-5200 1.01
■CPC-600
Drawing Outer diameterΦ10
MOQ:10pcs
Screw diameter L Product code Unit Price($)
For M6 52 CPC-652 0.51
55 CPC-655 0.51
58 CPC-658 0.54
60 CPC-660 0.54
62 CPC-662 0.57
65 CPC-665 0.60
68 CPC-668 0.60
70 CPC-670 0.62
72 CPC-672 0.62
75 CPC-675 0.68
78 CPC-678 0.71
80 CPC-680 0.71
82 CPC-682 0.71
85 CPC-685 0.73
88 CPC-688 0.77
90 CPC-690 0.77
92 CPC-692 0.79
95 CPC-695 0.79
98 CPC-698 0.82
100 CPC-6100 0.84
105 CPC-6105 0.90
110 CPC-6110 0.93
115 CPC-6115 0.96
120 CPC-6120 0.99
125 CPC-6125 1.01
130 CPC-6130 1.04
135 CPC-6135 1.07
140 CPC-6140 1.10
145 CPC-6145 1.18
150 CPC-6150 1.21
155 CPC-6155 1.23
160 CPC-6160 1.27
165 CPC-6165 1.29
170 CPC-6170 1.32
175 CPC-6175 1.34
180 CPC-6180 1.38
185 CPC-6185 1.40
190 CPC-6190 1.46
195 CPC-6195 1.49
200 CPC-6200 1.51
■CPC-800
Drawing Outer diameterΦ12
MOQ:10pcs
Screw diameter L Product code Unit Price($)
For M8 52 CPC-852 0.57
55 CPC-855 0.60
58 CPC-858 0.62
60 CPC-860 0.62
62 CPC-862 0.66
65 CPC-865 0.68
68 CPC-868 0.71
70 CPC-870 0.71
72 CPC-872 0.73
75 CPC-875 0.79
78 CPC-878 0.79
80 CPC-880 0.82
82 CPC-882 0.82
85 CPC-885 0.84
88 CPC-888 0.88
90 CPC-890 0.90
92 CPC-892 0.90
95 CPC-895 0.93
98 CPC-898 0.96
100 CPC-8100 0.99
105 CPC-8105 1.04
110 CPC-8110 1.07
115 CPC-8115 1.10
120 CPC-8120 1.16
125 CPC-8125 1.18
130 CPC-8130 1.23
135 CPC-8135 1.27
140 CPC-8140 1.29
145 CPC-8145 1.38
150 CPC-8150 1.40
155 CPC-8155 1.43
160 CPC-8160 1.49
165 CPC-8165 1.51
170 CPC-8170 1.54
175 CPC-8175 1.60
180 CPC-8180 1.62
185 CPC-8185 1.68
190 CPC-8190 1.71
195 CPC-8195 1.73
200 CPC-8200 1.79
■CPC-1000
Drawing Outer diameterΦ14
MOQ:10pcs
Screw diameter L Product code Unit Price($)
For M10 52 CPC-1052 0.66
55 CPC-1055 0.68
58 CPC-1058 0.71
60 CPC-1060 0.73
62 CPC-1062 0.73
65 CPC-1065 0.77
68 CPC-1068 0.79
70 CPC-1070 0.82
72 CPC-1072 0.84
75 CPC-1075 0.90
78 CPC-1078 0.90
80 CPC-1080 0.93
82 CPC-1082 0.96
85 CPC-1085 0.99
88 CPC-1088 1.01
90 CPC-1090 1.01
92 CPC-1092 1.04
95 CPC-1095 1.07
98 CPC-1098 1.10
100 CPC-10100 1.16
105 CPC-10105 1.18
110 CPC-10110 1.23
115 CPC-10115 1.29
120 CPC-10120 1.32
125 CPC-10125 1.38
130 CPC-10130 1.40
135 CPC-10135 1.46
140 CPC-10140 1.51
145 CPC-10145 1.57
150 CPC-10150 1.62
155 CPC-10155 1.68
160 CPC-10160 1.71
165 CPC-10165 1.77
170 CPC-10170 1.79
175 CPC-10175 1.84
180 CPC-10180 1.90
185 CPC-10185 1.93
190 CPC-10190 1.99
195 CPC-10195 2.04
200 CPC-10200 2.07
■CPC-1200
Drawing Outer diameterΦ16
MOQ:10pcs
Screw diameter L Product code Unit Price($)
For M12 52 CPC-1252 0.71
55 CPC-1255 0.73
58 CPC-1258 0.79
60 CPC-1260 0.79
62 CPC-1262 0.82
65 CPC-1265 0.84
68 CPC-1268 0.88
70 CPC-1270 0.90
72 CPC-1272 0.93
75 CPC-1275 0.99
78 CPC-1278 1.01
80 CPC-1280 1.04
82 CPC-1282 1.04
85 CPC-1285 1.10
88 CPC-1288 1.12
90 CPC-1290 1.12
92 CPC-1292 1.16
95 CPC-1295 1.18
98 CPC-1298 1.21
100 CPC-12100 1.27
105 CPC-12105 1.32
110 CPC-12110 1.38
115 CPC-12115 1.43
120 CPC-12120 1.46
125 CPC-12125 1.51
130 CPC-12130 1.57
135 CPC-12135 1.62
140 CPC-12140 1.68
145 CPC-12145 1.77
150 CPC-12150 1.82
155 CPC-12155 1.84
160 CPC-12160 1.90
165 CPC-12165 1.96
170 CPC-12170 2.01
175 CPC-12175 2.07
180 CPC-12180 2.12
185 CPC-12185 2.18
190 CPC-12190 2.21
195 CPC-12195 2.27
200 CPC-12200 2.32

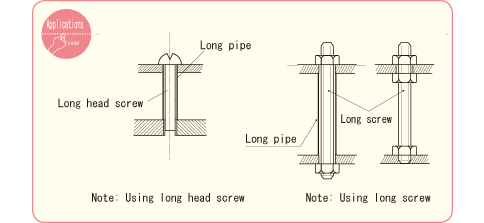

Long pipeのApplications
