PCT Pin header／FRL-41 Socket (φ) 2.54 mm pitch SMT right angle (1 row)
Connection side φ0.47mmPin / Connection side φ0.76mmPin

【Resin part】 Material：PCT(Glass encapsulated thermoplastic resin polyester)
  Color：Black
  ・Thermal deformation temperature: 1.80 MPa: 255℃
  Flammability：UL94V-0
【Sleeve】
sleeve挿絵		 Material：CuZn36Pb3(C36000)
Treatment：Pure tin plating
【Contacts】
contacts挿絵		 Material：Beryllium copper(C17200)
Treatment：Gold plating0.75μm
【Specifications】 Current capacity：3A
  Insulation resistance：10000MΩ min (500Vac)
  Contact resistance：10mΩ max
  Operating temperature range：-55℃- +125℃
  Withstand voltage：1000Vrms min
  RoHS compliant product

☆=Connection side φ0.47mmPin　*=Connection side φ0.76mmPin

■FRL-410375-00(1 row)
Drawing Right angle
Connection side φ0.47mmPin
Stacking quick selection table
MOQ:10pcs
H Number of pins Product code Unit Price($)
3.7 2 FRL-410375-02 0.47
3 FRL-410375-03 0.72
4 FRL-410375-04 0.92
5 FRL-410375-05 1.13
6 FRL-410375-06 1.37
7 FRL-410375-07 1.58
8 FRL-410375-08 1.81
9 FRL-410375-09 2.02
10 FRL-410375-10 2.26
20 FRL-410375-20 4.22
■FRL-410376-00(1 row)
Drawing Right angle
Connection side φ0.76mmPin
Stacking quick selection table
MOQ:10pcs
H Number of pins Product code Unit Price($)
3.7 2 FRL-410376-02 0.69
3 FRL-410376-03 1.00
4 FRL-410376-04 1.29
5 FRL-410376-05 1.58
6 FRL-410376-06 1.89
7 FRL-410376-07 2.20
8 FRL-410376-08 2.49
9 FRL-410376-09 2.72
10 FRL-410376-10 2.94
20 FRL-410376-20 5.90
■FRL-41070-00(1 row)
Drawing Right angle
Connection side φ0.76mmPin
Stacking quick selection table
MOQ:10pcs
H Number of pins Product code Unit Price($)
7 2 FRL-41070-02 0.70
3 FRL-41070-03 1.03
4 FRL-41070-04 1.32
5 FRL-41070-05 1.62
6 FRL-41070-06 1.93
7 FRL-41070-07 2.26
8 FRL-41070-08 2.59
9 FRL-41070-09 2.82
10 FRL-41070-10 3.03
20 FRL-41070-20 6.07

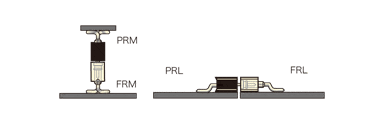

●Example of vertical mounting
Example of vertical mounting
●Example of horizontal mounting
Example of horizontal mounting
