PCT Pin header／PRR-40 Pin (φ) 2.54 mm pitch Right angle (1 row/2 rows)
Connection side φ0.47mmPin/Connection side φ0.76mmPin
【Resin part】 Material：PCT(Glass encapsulated thermoplastic resin polyester)
  Color：Black
  Thermal deformation temperature: 1.80 MPa: 255℃
  Flammability：UL94V-0
【Pin】 Material：CuZn36Pb3(C36000)
  Treatment：Gold plating0.25μm
【Specifications】 Current capacity：3A
  Insulation resistance：10000MΩ min(500Vac)
  Contact resistance：10mΩ max
  Operating temperature range：-55℃- +125℃
  Withstand voltage：1000Vrms min
  RoHS compliant product

☆=Connection side φ0.47mmPin　*=Connection side φ0.76mmPin

■PRR-410294-00(1 row)　
Drawing Connection side φ0.47mmPin
Stacking quick selection table
MOQ:10pcs
H Number of pins Product code Unit Price($)
2.95 2 PRR-410294-02 0.51
3 PRR-410294-03 0.74
4 PRR-410294-04 0.98
5 PRR-410294-05 1.17
6 PRR-410294-06 1.39
7 PRR-410294-07 1.70
8 PRR-410294-08 1.83
9 PRR-410294-09 2.18
10 PRR-410294-10 2.30
20 PRR-410294-20 4.38
■PRR-420284-00(2Rows)　
Drawing Connection side φ0.47mmPin
Stacking quick selection table
MOQ:10pcs
H Number of pins Product code Unit Price($)
2.8 4 PRR-420284-02 1.23
6 PRR-420284-03 1.83
8 PRR-420284-04 2.24
10 PRR-420284-05 2.74
12 PRR-420284-06 3.11
14 PRR-420284-07 3.73
16 PRR-420284-08 4.32
18 PRR-420284-09 4.84
20 PRR-420284-10 5.29
40 PRR-420284-20 9.94
■PRR-410295-00(1 row)　
Drawing Connection side φ0.76mmPin
Stacking quick selection table
MOQ:10pcs
H Number of pins Product code Unit Price($)
2.95 2 PRR-410295-02 0.43
3 PRR-410295-03 0.66
4 PRR-410295-04 0.87
5 PRR-410295-05 1.08
6 PRR-410295-06 1.29
7 PRR-410295-07 1.51
8 PRR-410295-08 1.72
9 PRR-410295-09 1.93
10 PRR-410295-10 2.14
20 PRR-410295-20 4.36
■PRR-420285-00(2Rows)　
Drawing Connection side φ0.76mmPin
Stacking quick selection table
MOQ:10pcs
H Number of pins Product code Unit Price($)
2.8 4 PRR-420285-02 0.79
6 PRR-420285-03 1.18
8 PRR-420285-04 1.57
10 PRR-420285-05 1.96
12 PRR-420285-06 2.34
14 PRR-420285-07 2.73
16 PRR-420285-08 3.12
18 PRR-420285-09 3.51
20 PRR-420285-10 3.90
40 PRR-420285-20 7.80

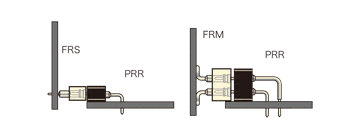

●Example of vertical mounting
Example of vertical mounting
●Example of horizontal mounting
Example of horizontal mounting
