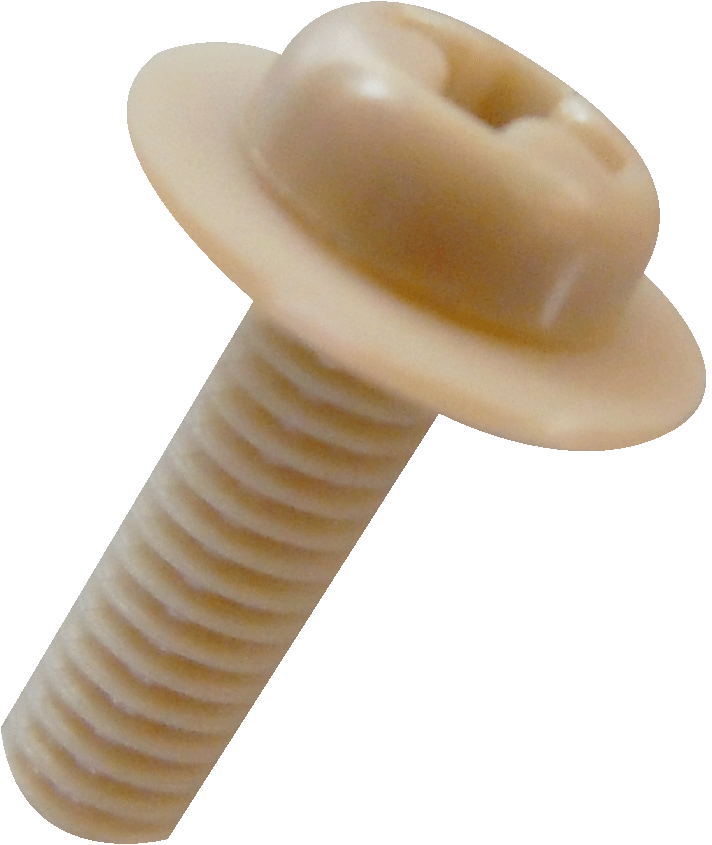

PEEK Set pan head screw / PE-0000-E

【Screw】 Material：PEEK(Polyether ether ketone)
Color：Light brown
Thermal deformation temperature：1.82MPa:152℃
UL standard：UL94V-O(Material)
【PTFE washer KW】 Material：PEEK(Polyether ether ketone)
  RoHS compliant product
  With PTFEPE-0000-T
■PE-0000-E　
Drawing
MOQ:50pcs
Screw diameter
(pitch)		 D-H KW
PEEK
d-t		 L Product code Unit Price($)
M3
(0.3)		 5.5-2.0 8-0.5 6 PE-0306-E 0.40
8 PE-0308-E 0.40
10 PE-0310-E 0.40
12 PE-0312-E 0.47
15 PE-0315-E 0.71
16 PE-0316-E 0.77
20 PE-0320-E 0.89
25 PE-0325-E 1.01
If screw is used with a nut, we recommend using the screw and nut made of the same material.

If screw is used with a female threaded part, we recommend maximum depth of 20 mm.
