Button battery holder / CDH-500

【Specifications】 Rated current：1A
Contact resistance：20mΩ以上(DC 100mA)
Insulation resistance：1000MΩ以上
Use temperature range：-55℃-+105℃
【Resin Part】 Material：PPS(GF40％)
Flammability：UL94V-0 (material)
【Contacts】 Material：Phosphor bronze
Treatment：Gold plating
RoHS compliant product
■CDH-500

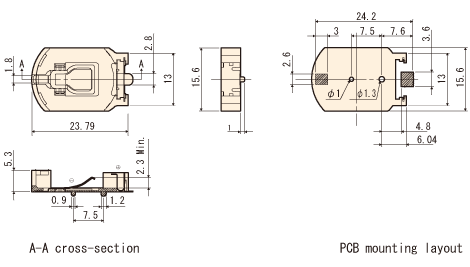

Drawing
Surface mount type
MOQ:10pcs
Applicable batteries Product code Unit Price($)
CR2032 CDH-501 1.11
CDH　●Button battery holder


Battery holder for mounting button batteries on a PC board

  • ●Once the battery is mounted it will be safely secured and not fall out easily, preventing risk of contact failure.
  • ●When removing the battery, simply press the tab lightly in the middle with the fi ngertip or a pen tip.
  • ●Available in through-hole pin and surface mount types.
