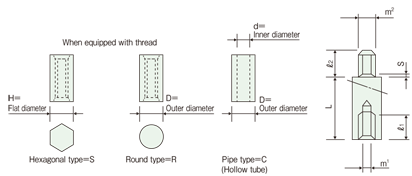

- Spacer terminology and codes
 |
Thread pitches are manufactured according to metric coarse thread standards. |
=Mounting length
=Female thread diameter
=Female thread diameter length
=Male screw diameter
=Male screw mounting length
=Incomplete thread section Incomplete thread sections are manufactured with 2 ridges according to JIS standard within pitch x 1.5.| A TYPE | B TYPE | C TYPE | ||
|---|---|---|---|---|
Female-female, hexagonal |
Female-female, round type |
Male screw/Female threadHexagonal |
Male screw/Female threadRound type |
Hollow tube(Pipe) |
|
|
|
|
|
