Pin header product code composition

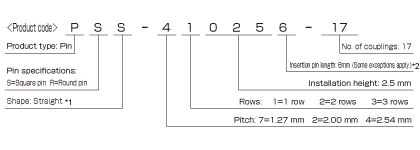

Pin(Pin header)
*1: See below for information on shapes.
*2: Some exceptions apply.

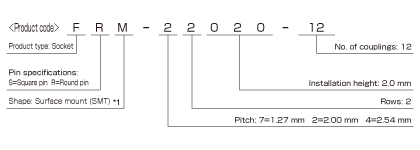

Socket(Female header)
*1: See below for information on shapes.

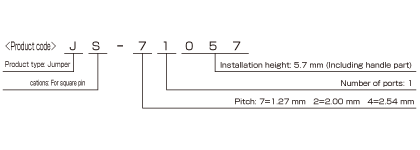

Jumper(Mini jumper)

Pin header shape

Note: Pin and socket specifi cations include both round pins (φ) and square () pins.

Pin(Pin header)
Code
Shape		 S or G (glass epoxy)
Straight (DIP)
SまたはG　ストレート		 R
Right angle(R/A)
R　Right angle		 M
Surface mount(SMT)
M　Surface mount(SMT)		 L
SMT right angle(SMT, R/A)
L　Right angle

Socket(Female header)
Code
Shape		 S
Straight (DIP)
Socket　ストレート		 R
Right angle(R/A)
Socket　Right angle		 M
Surface mount(SMT)
Socket　Surface mount(SMT)		 L
SMT right angle(SMT,R/A)
Socket　Right angle

Jumper(Mini jumper)
Shape Closed
Jumper　Closed		 Open
Jumper　Open		 With handle
Jumper　With handle		 Coupled type
Jumper Coupled type
Note: Refer to the "quick selection tables" at the top page of each series for suitable pin and socket combinations.
>>Round pin　Stacking quick selection table
>>Pin header　Square pin　Stacking quick selection table
Items listed in the pin header series (pins, sockets, jumpers) are all RoHS compliant.
