- ●High position (cylinder bead) specifi cation suitable for high density mounting. Avoids visibility diffi culties due to obstruction by other components.
- ●Springs have inverted triangular shape to off er secure hooking onto with a wide variety of probe shapes.
- ●Low position specifi cation available for loosely spaced mount boards to allow for various uses.

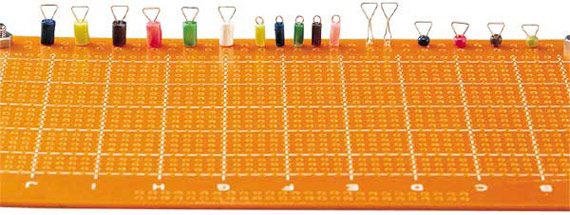

- ●Allows circuit grouping using 10 diff erent colors. (Yellow and mocha colors newly added.)
- ●No-beads and compact bead specifi cations are also available allowing suitability for various usage conditions.
|
 |
- ●Manufacturing method changed from blow-molding (blown items) to stamp molding (pressed items).
- ・Softening point improved greatly to 670°C for pressed items.
- ・Dimensional accuracy also improved (due to stamp molds).
- ・Products are RoHS compliant.
- ・Heads have inverted triangular shape to off er secure hooking onto with signal check oscilloprobes.
- ・Can be mounted with uniform height due to leg projections.

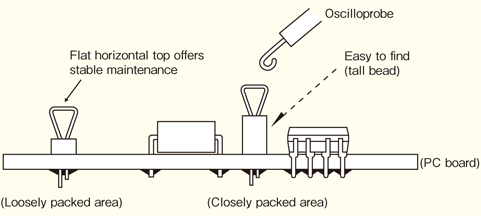

- ・Easy to conduct testing since beads are tall even in spots where components are packed tightly.
- ・Enlarge PC board holes (φ1.3 or more) for lower mounting.
- ・PC board mounting hole diameter φ1.0
|
 |
 Product Detail（Check terminal(HYT-4007、HYT-4000O、HYT-2054O)） |
